- The PUR 2 kg light eSmart bag melter is equipped with a hose connection. This system is suitable for edge banding machines with lower glue consumption
- Tank size for all commercially available PUR bags in sizes of 2-3 kg
- Building block system. All components can be replaced separately. Simply remove the sheet metal box and you can quickly access all the relevant components
- Melting performance of up to 2kg/h (depending on the adhesive and the viscosity)
- Remote diagnostics. Control via PC, tablet or smartphone (Optional)
- Standard with flashlight. An acoustic and optical signal for the bag change guarantees no machine downtime. If errors occur, the flashlight also shows this status so that you know about your machine even from a distance
- Electronic filling level monitoring, actual temperature - setpoint comparison, temperature reduction, weekly timer
- Various switch-on delays
- Sensor control PT 100
- Overtemperature protection, sensor break diagnosis, overload protection
- High resolution touch screen. Extremely simple operation thanks to the very clear, multilingual menu
The solid PUR adhesive, which is wrapped in aluminum foil, is placed in the tank. There the glue is melted gently and as needed.
Under the tank is a glue reservoir. A maximum quantity of 0.7kg liquid glue is stored there.
From there, the adhesive is conveyed with a gear pump via a FE-MA-TECH® hot glue hose through an application head (heated valve) into the application devices (IMA, Homag, etc.).
The system is completely airtight. Thus, if used correctly, the adhesive can remain in the system for several months.
| Weight |
approx. 70 kg |
| Dimensions |
550 x 430 x 970 mm |
| Type of glue pump |
gear pump |
| Rated speed of pump |
93 rpm |
| Basic tank size (reservoir) |
ca 1 litre |
| Melting capacity |
up to 2 kg/h |
| Temperature sensor |
PT100 unit and external heaters / optionak Ni. 120 |
| Control accuracy |
+/- 1°C |
| Heaters (device) |
1 heating zone, basic tank and premelting plate |
| Heaters (external) |
2 (1 hose + 1 head) |
| Operating voltage |
3 L/N/PE, 230/400V |
| Control voltage |
24V DC |
| Permissible voltage divergence |
+/- 10% |
| Pre-fuse, max. |
3x16A |
| Frequency range |
50/60 Hz |
| Connected load (system) |
2,0 kW |
| Connected load (system + external) |
>2.2 kW (depending on the hose length) |

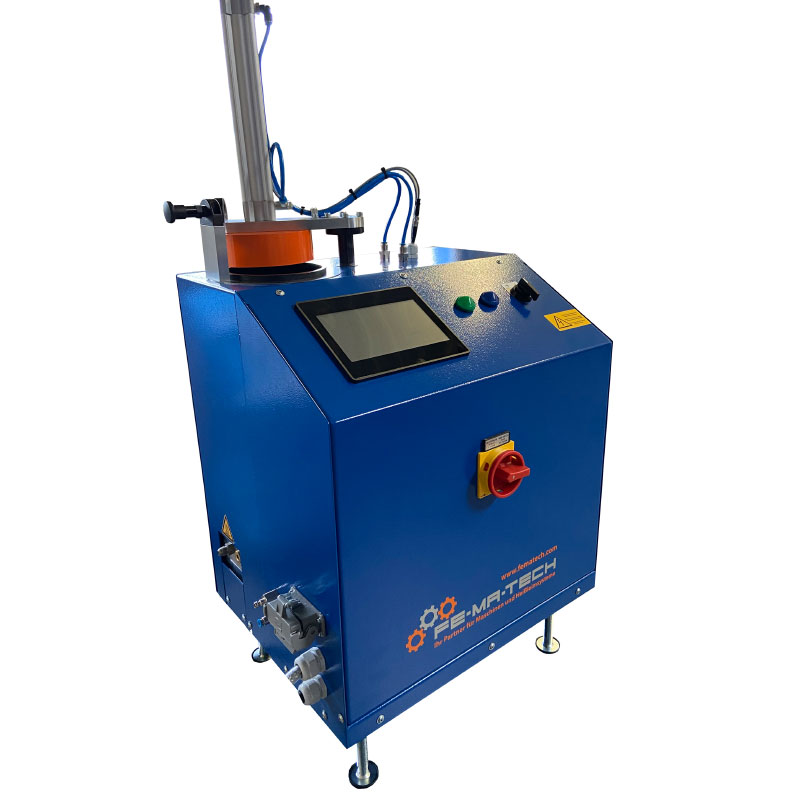

.jpg "PUR bag melting device 2kg light")
.jpg "Preview: PUR bag melting device 2kg light")

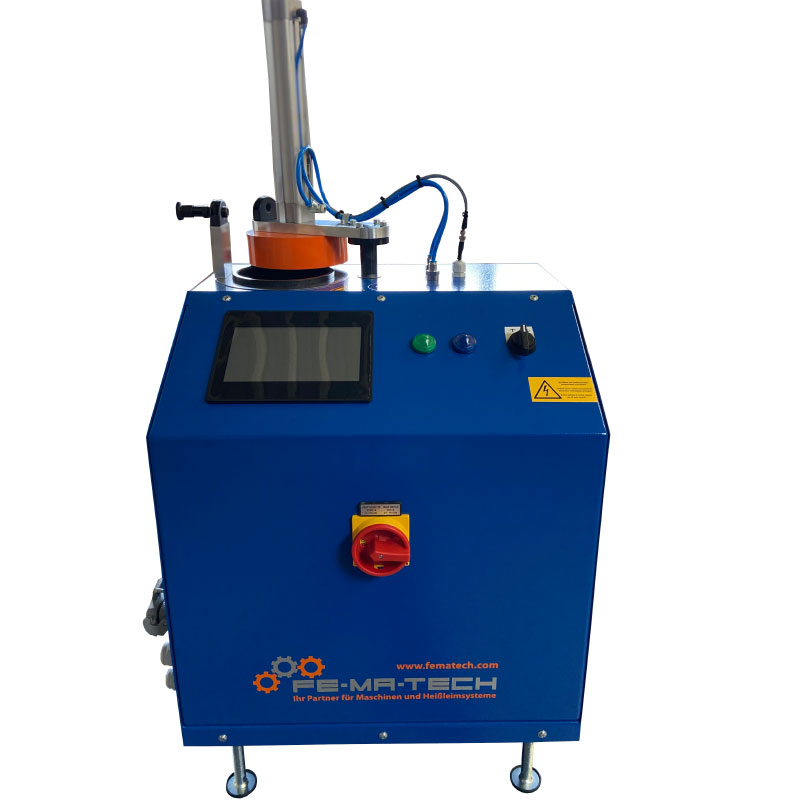

.jpg "PUR bag melting device 2kg light")
