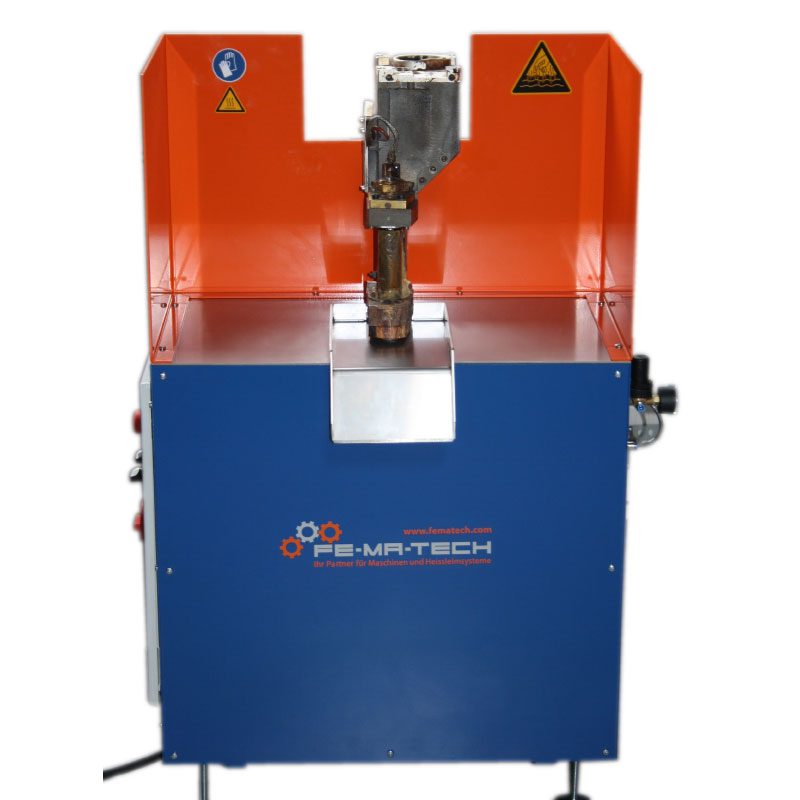

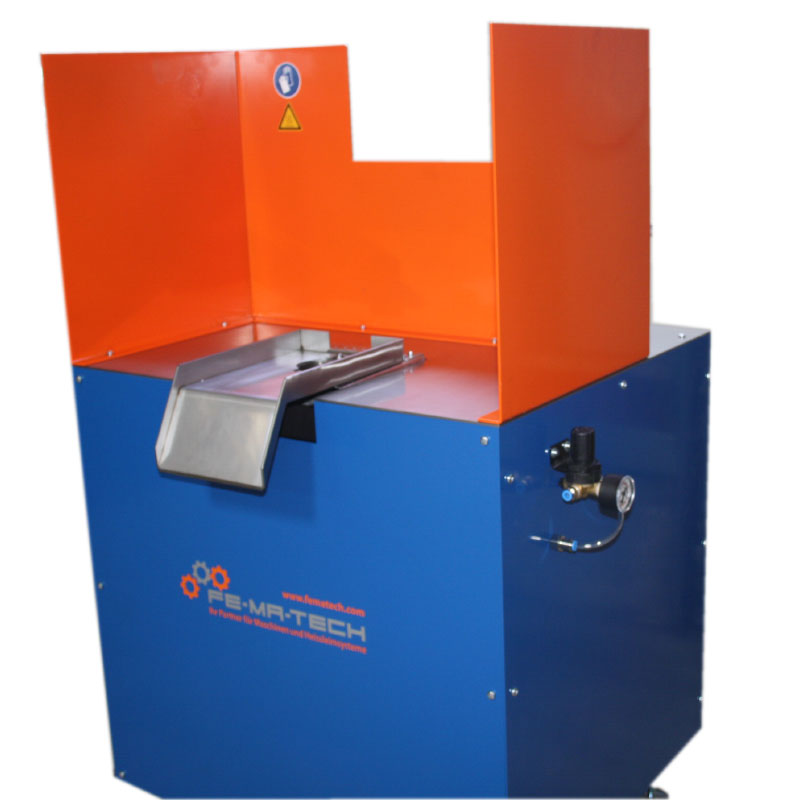

The preheating and cleaning table is the ideal supplement for those who work with PUR and depend on a quick change of the gluing part.
Ideal for preheating the glue units. Guaranteed a significantly shorter set-up time.
The glue is fixed on the pre-heating table and brought to and maintained at the desired temperature using a digital temperature controller.
The glue roller rotates left or right as required.
In order to clean the glued parts and let old glue out of the glue pot, the glued part can be swiveled forwards by operating a manual switch. The glue can then flow out of the basin without a great deal of work.
| Weight |
110 kg |
| Dimensions |
680 x 670 x 1147 mm |
| Type of glue applicator |
Q34 u. Q65 |
| Drive |
AC motor |
| Rated speed of drive |
43 rpm |
| Temperature sensors |
PT100 or thermocouple |
| Control accuracy |
+/- 1°C |
| Number og thermostats |
1 |
| Compressed air, min. |
6 bar |
- Operating voltage: 3 L/N/PE, 400V
- Control voltage: 24V DC
- Permissible voltage divergence: +/- 10%
- Pre-fuse max.: 3x16A
- Frequency range: 50/60 Hz
- Max. connected load: 2,5 kW
