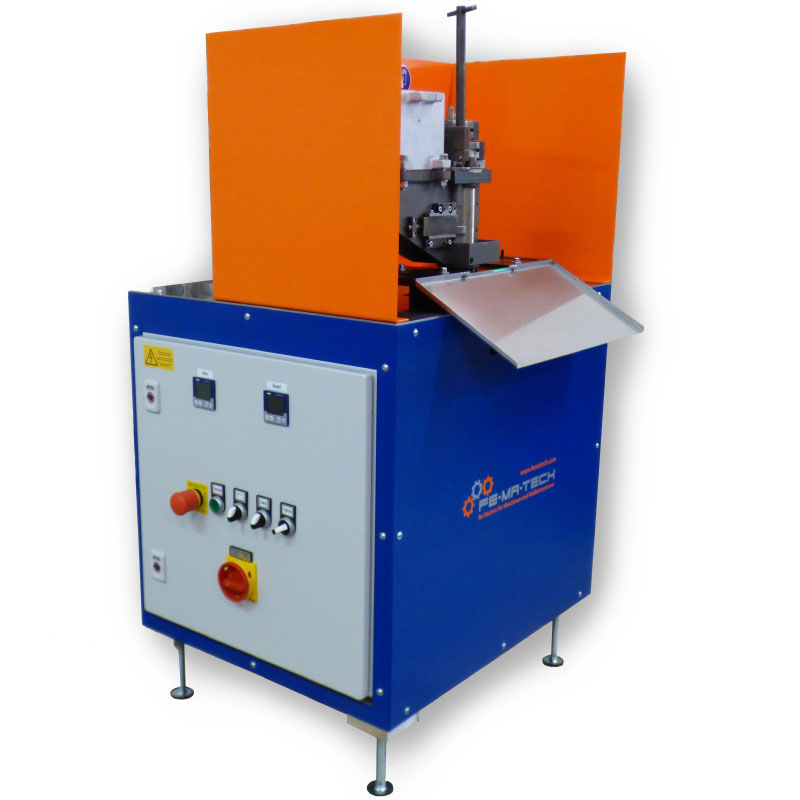

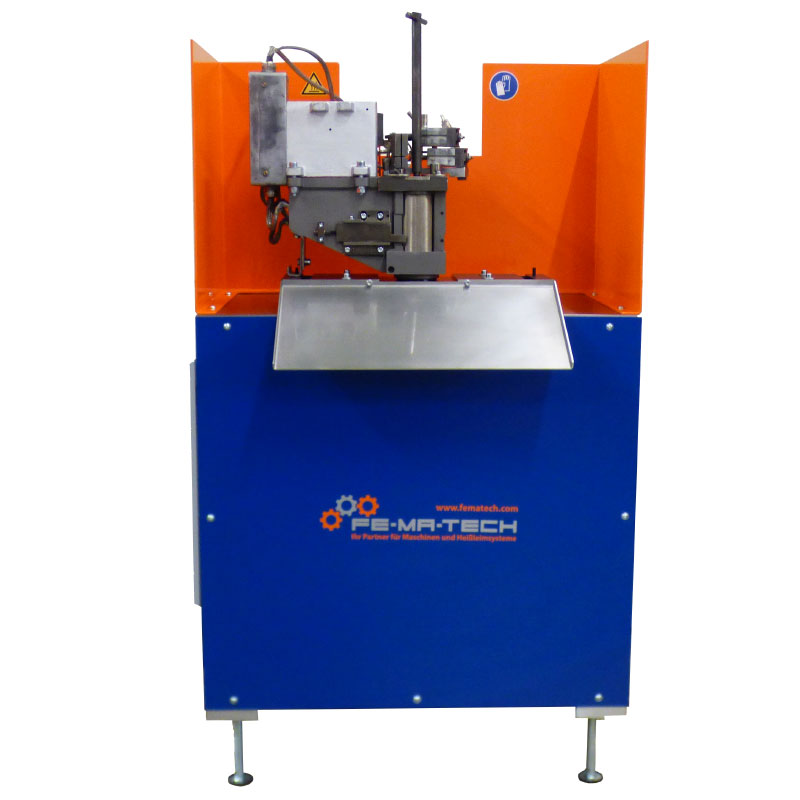

The preheating and cleaning table is the ideal supplement for those who work with PUR and depend on a quick change of the gluing part.
Ideal for preheating the glue units. Guaranteed a significantly shorter set-up time.
The glue is fixed on the pre-heating table and brought to and maintained at the desired temperature using a digital temperature controller.
The glue roller rotates left or right as required.
In order to clean the glued parts and to let old glue out of the glue pot, the glued part can be swiveled forwards by operating a hand switch. The glue can then flow out of the tank without much work.
| Weight |
110 kg |
| Dimensions |
680 x 670 x 1147 mm |
| Type of applicator |
1 litre, 0,8 litre and 0-series |
| Drive |
AC motor |
| Rated speed of drive |
43 rpm |
| Temperature sensors |
PT100 or thermocouple |
| Control accuracy |
+/- 1°C |
| Number of thermostats |
2 |
| Compresssed air, min. |
6 bar |
| Operating voltage |
3 L/N/PE, 400V |
| Control voltage |
24V DC |
| Permissible voltage divergence |
+/- 10% |
| Pre-fuse, max. |
3x16A |
| Frequency range |
50/60 Hz |
| Max. connected load |
2,5 kW |
