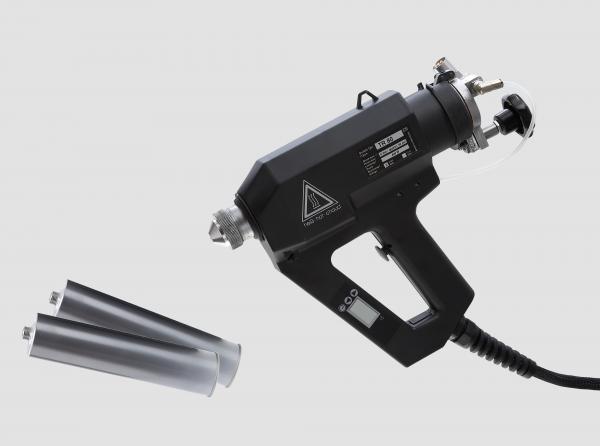

The TR 80 LCD Cartridge Hot-Spray-System consists of the TR 80 LCD Cartridge gun and the stand with pressure regulator and manometer.
Spray application
The TR 80 LCD is an adhesive spray system. The spray application is a contactless application process, therefore protects the materials to be bonded and is characterized by low adhesive consumption with large area coverage.
Storage tripod incl. pressure regulator & pressure gauge
The storage tripod with built-in pressure regulator and pressure gauge is included in the scope of delivery and permanently installed with the device. This significantly simplifies the precise adjustment of the job pattern and the output quantity.
Pneumatischer Klebstofftransport
Der Klebstoff wird über Druckluftzufuhr ausgebracht. Pneumatische Klebepistolen vereinfachen schnelles Arbeiten und die präzise Regulierung des ausgestoßenen Heißklebers.
Electronic temperature control with LCD display
Thanks to the built-in electronic temperature control, the working temperature is reached within 3 to 10 minutes. In addition, it keeps the set temperature of the hot glue gun very constant and is therefore particularly suitable for temperature-sensitive adhesives. Precise temperature adjustment is made possible by the built-in LCD display and push buttons. The user always knows what temperature the device currently has and can thus maintain the optimal processing temperature.
Processing of reactive adhesives in 310 ml cartridges (e.B. PUR)
The spray gun is filled with 310 ml of aluminum hot melt adhesive cartridges. They can be replaced quickly and easily. The optional KVG cartridge preheater heats up the adhesive before processing, thus increasing the possible adhesive throughput.
Can be converted to point and crawler application
The cartridge gun can be easily and quickly converted to point and crawler application with an adapter.
| Weight applicator |
1400 g |
| Power connection |
230 V (50 Hz), 2,8 A / 120 V (60 Hz), 3,3 A |
| Power consumption |
230 V: 650 Watt / 120 V: 400 Watt |
| Protection class |
I, IP 30 |
| Temperature control, display |
Electronic, digital |
| Temperature limitation |
Temperatur monitor |
| Operating temperature |
50 – 210 °C (on request: max. 250 °C) |
| Temperature constancy |
± 2 °C |
| Heat-up time |
ca. 3 – 10 min. |
| Gross capacity |
310 ml |
| Conveyor system |
Air pressure |
| Operating pressure |
0,5 – 6 bar |
| Length of electrical connection |
4 m |
| Length of connection (stand to handgun) |
4,5 m |
| Length connection set |
3 m |
| Recommended melting goods |
Hot-melts in 310 ml aluminium cartridges |
