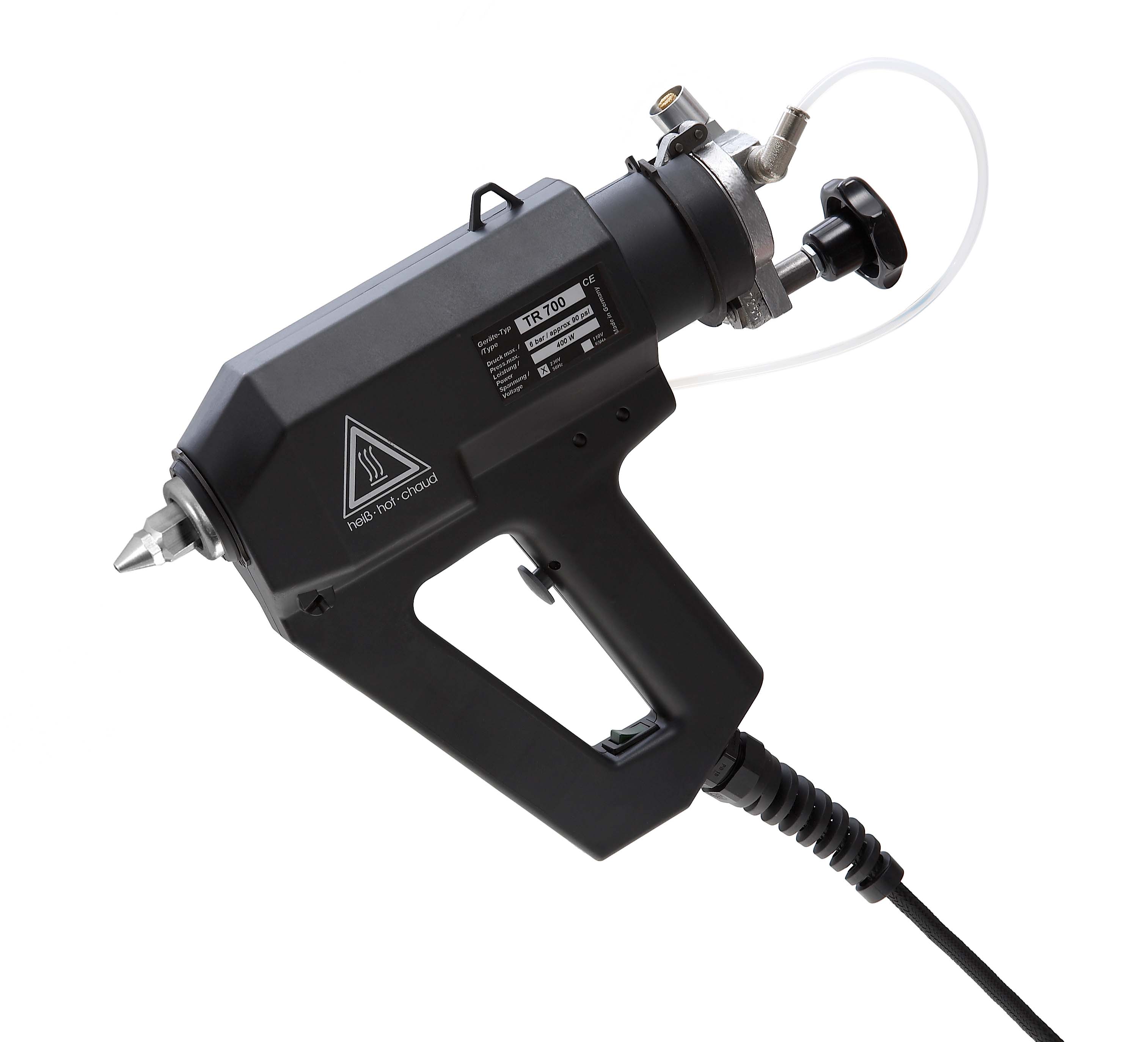

With the TR 700, you can process hotmelt adhesives in 310 ml aluminum cartridges in dot, line or bead form.
With the TR 700, adhesive can be easily applied in dot and bead form. The adhesive is dispensed from the hot glue gun via compressed air supply. Pneumatic glue guns facilitate fast work and precise regulation of the ejected hot glue.
The working temperature is regulated by a thermostat and maintained at a factory-set value of approx. 120 °C. The adhesive applicator is filled with 310 ml aluminum adhesive cartridges.
For example, PUR hotmelt or POR hotmelt adhesives can be processed. The cartridges can be changed quickly and easily.
| Weight applicator |
1400 g |
| Power connection |
230 V (50 Hz), 1,75 A |
| Power consumption |
600 Watt |
| Protection class |
I, IP 30 |
| Temperature control |
Thermostat |
| Temperature limitation |
Temperatur monitor |
| Operating temperature |
120 °C |
| Temperature constancy |
± 5 °C |
| Heat-up time |
3 – 10 min. |
| Gross capacity |
310 ml |
| Conveyor system |
Air pressure |
| Operating pressure |
0,5 – 6 bar |
| Length of electrical connection |
8,5 m |
| Air hose length |
3 m |
| Length connection set |
3 m |
| Recommended melting goods |
310 ml adhesive aluminum cartridges |
