Glue level Sensor S3G 6/10
Glue level Sensor S3G 6/10
Glue level Sensor S3G 6/10

Glue level Sensor S3G 6/10

Product No.:
90.20.00.22
3-4 days 3-4 days (abroad may vary)
You do not have permission to view the prices

Add to wish list
Ask about product
Description

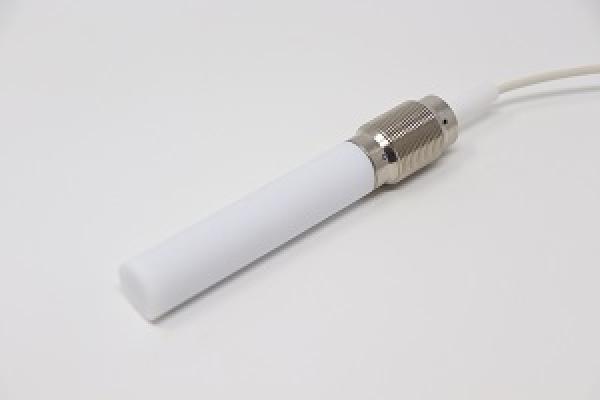

Teflon probe S3G 6/10

Housing PTFE (Teflon) and brass (nickel-plated)
Degree of protection IP65 according to EN 60529
Permitted vertical installation position
Ambient temperature 0°C to +250°C
Type of connection shielded PTFE cable with plug
Mounting accessories 2 nuts M18 X 1
Cable length 1.0m
Technical data

Sensor temperature range -10°C to 250°C
Cable temperature range -10°C to 200°C
Material PTFE / MS58 nickel-plated material
Cable length incl. plug approx. 960 mm
Plug 3-pin DIN 41524
Accessories 2 mounting nuts
M18x1 SW24
Use with switching amplifiers of the CLS, CLC, CVS, DLC22 series
Active zone / switching range 2 – 40 mm based on sensor tip
Installation position vertical

http://images/S3G 6_10_d01_2.pdf
